GS-SSHR-450 Standard

👆 Replace this image with your product photo

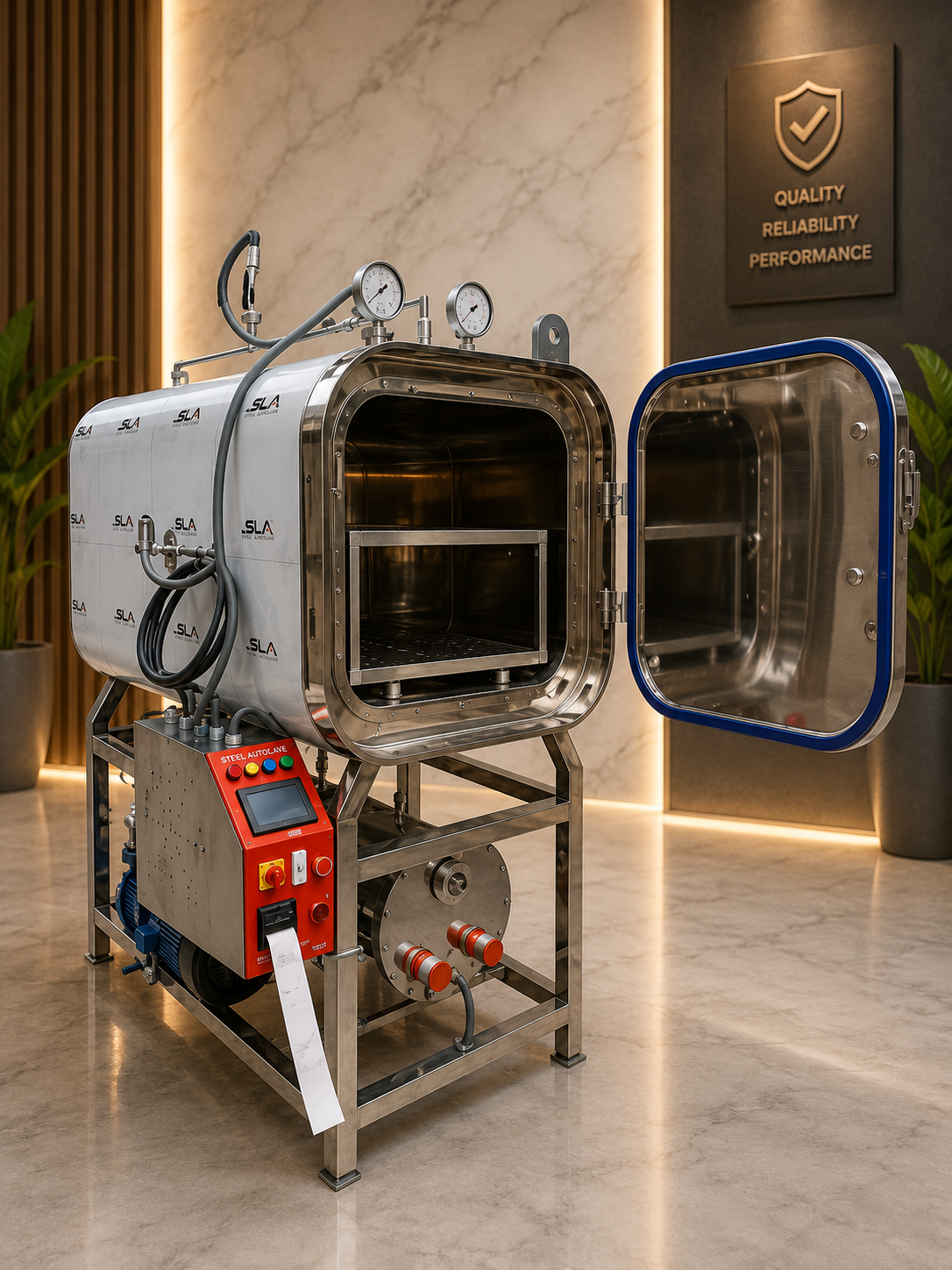

GS-SSHD-800 Fully Automatic

👆 Replace this image with your product photo

• Construction: Robust all‑weld, leakproof construction. Inner chamber: thick Mild Steel or non‑magnetic SS 304/316L. Jacket: rolled steel.
• Door: Single door, rolled steel lined with SS sheet on both sides.
• Hydraulic test: Tested to withstand 2.5× working pressure.
• Steam jacket insulation: Asbestos sheet or glass wool, covered with strong painted rolled steel.
• Boiler: Thick SS plate, high‑grade ranged heating elements (water front side for easy replacement).
• Fittings: Water gauge glass, safety valve, water inlet, drain valves, Low Water Level cut‑off.
• Hydraulic test: All units tested up to 40 psi.
• Drain valve: Side bottom for easy draining / cleaning.
• Triple walled: Steam jacket + separate boiler. Sterilization cycle controlled by Multi‑port Valve.
• Power: 440 V, 3‑Phase A.C. Supply.
• Pressure gauge: Individual gauge for boiler steam pressure.
• Self‑locking safety door: Cannot be opened when chamber is under pressure. Triple safety.
• Low‑Water Level Cut‑OFF: Automatic pressure control device.
• Vacuum breaker: Breaks vacuum in case of condensation.

Door

• Fabricated from SS 304 — maximum operator safety
• Process‑lock prevents door opening during process
• Process‑lock prevents door opening after cycle completion

Insulation

• Minimum 50 mm thick R.B Glass Wool
• Held in place by outer cover of SS 304
• 0.3‑micron vacuum break air filter on sterile side for pressure equalisation after vacuum creation

Piping Package

• All process piping in contact with chamber: SS 304 with argon welding
• Sanitary tri‑clamp connections with silicone seals
• All non‑contact piping: SS 304 with argon welding
• Drain lines & exhausts connected to a drain manifold
• Pipelines have 2 % slope for full draining to prevent contamination
• All pneumatic lines: polyurethane with aluminium die‑cast connectors

Valve Package

• Process valves in contact with chamber: SS 304 contact parts with Teflon seat and tri‑clamp connections
• All automatic valves: pneumatically actuated angle valves
• Valves actuated by instrument air controlled via solenoid valves

Steam Accessories

• Jacket and chamber provided with over‑pressure safety valve
• Chamber provided with steam trap
• Inside chamber & doors finished to < 0.8 Ra surface finish
• All non‑contact parts polished to < 180 grit

Process Management System

Designed to perform a wide range of tests and production programs to meet the latest regulatory requirements.

Temperature & Pressure Sensors

• Two sensors: one inside chamber, one at drain outlet
• All sensors connected to PLC and Recorder for accurate process control
• System least count: 0.10 °C
• Pressure transmitter connected to chamber
• Pressure least count: 0.002 bar
• All utility lines provided with pressure switch for utility‑failure alarm

Electrical Switchgear

• Control cabinet with main isolator for 3‑phase supply
• Separate switch for control supply
• Fascia with indication LEDs and switches for operation

Process Recording

• Schneider do matrix data printer for recording date, time, process parameters, status
• Alarms provided with the machine

Control Panel

• User‑friendly HMI as front‑end interface
• RS 232 port for data communication
• In‑built Real‑Time Clock with date & time function

Safety & Alarm Features

• Cycle over
• Too long time to create vacuum
• Pressure Achieve
• Utility Failure Alarm
• No sharp corners
• No welding edges
• Low water level
• Jacket pressure over
• Chamber pressure over
