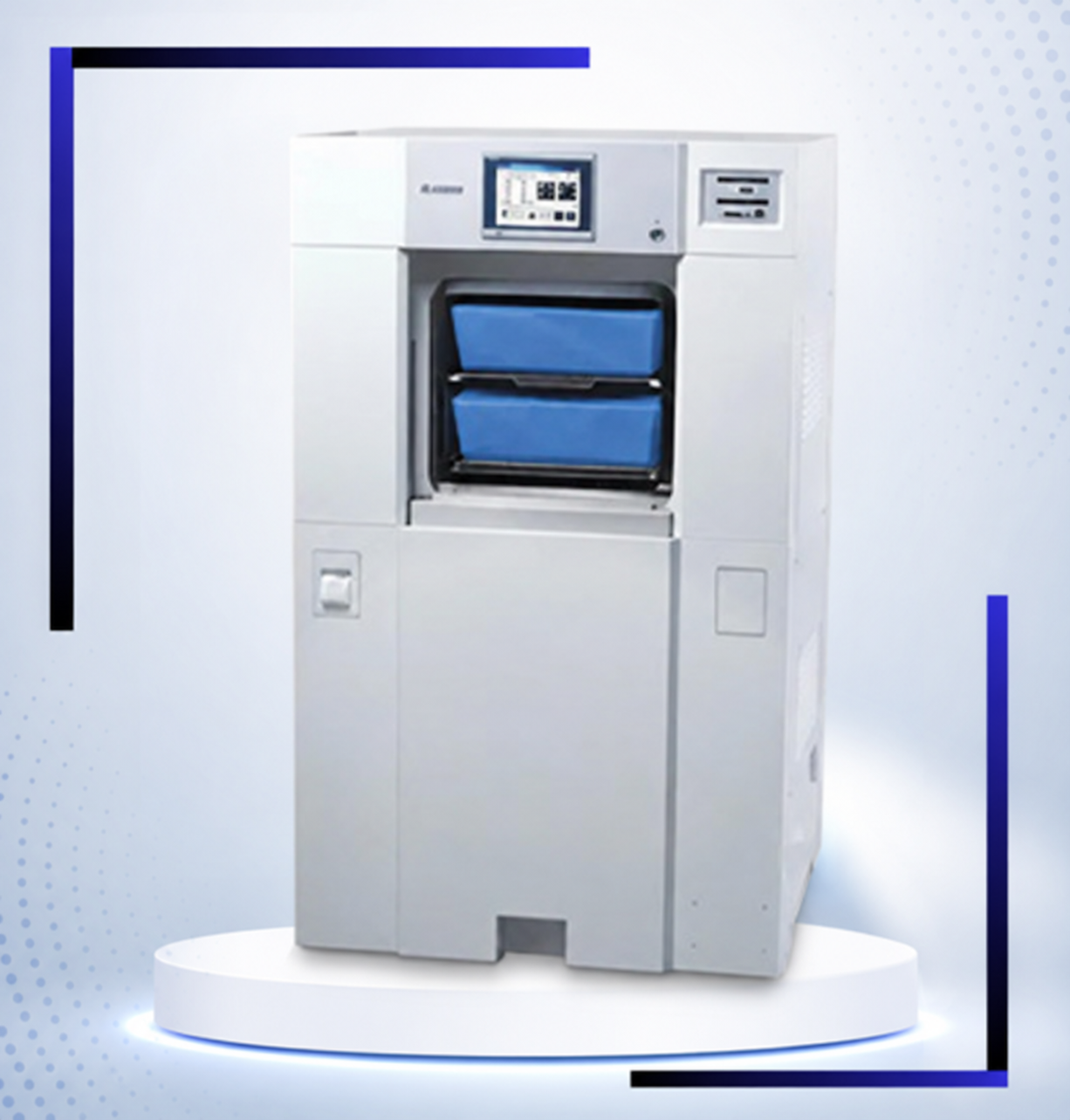

Low Temperature
Hydrogen Peroxide Plasma
Shortest 17‑min cycle, safe & green sterilization with hydrogen peroxide – ideal for OT/CSSD.
- Fast Sterilization: 17 min (small load) / 25 min (large load)
- Low Temperature: 35–55°C, dry process
- Safe & Green: Byproducts water & oxygen only
- Powerful: SAL 10⁻⁶ assurance level
- Easy Installation: No special room or drainage required
- Consumables: Biological & chemical indicators, cassette, non‑woven fabric
Overview
Shortest 17 mins cycle and small installation space required. It is especially good for OT/CSSD for fast sterilization of instruments in a small amount.
Shortest 25 mins cycle and small installation space required. It is especially good for OT/CSSD for fast sterilization of instruments in a large amount.
The sterilization cycle is strictly controlled below 60°C in a dry condition, avoiding damages caused by temperature and humidity changes. Dynamic laminar flow oil and gas separation technology together with a special air absorbing device ensures exhausted air is clean and safe.
Work Modes
Small Load – 17 min cycle
| Work Mode | Short Time Loading Continuous Running |
| Power Supply | 3N 380V / 1 Phase, 220V |
| Work Temperature | 35‑55°C |
| Chamber Shape | Rectangular |
| Dimension | 700(L) x 970(W) x 750(H) |
| Door(s) | Single |
Large Load – 25 min cycle
| Work Mode | Short Time Loading Continuous Running |
| Power Supply | 3N 380V / 1 Phase, 220V |
| Cassette Usage | Short 12 Cycle Standard – 6 Cycles |
| Work Temperature | 35‑55°C |
| Chamber Shape | Rectangular |
| Available Dimensions | 800(L) x 1050(W) x 1730(H) 800(L) x 1050(W) x 1790(H) 1000(L) x 1100(W) x 1790(H) |
Advantages
- Fast Sterilization: Shortest 17 minutes cycle. A shorter cycle time requires fewer instruments to meet the supply‑demand. Therefore, cycle time is extremely important. With a shorter cycle time, the plasma sterilizer saves costs for extra instruments and enables the fastest turnover of important instruments.
- Safe and Green Sterilization: GS ENTERPRISES Plasma Sterilizer is in full compliance with medical devices safety standards. Sterilant is hydrogen peroxide and byproducts are only water and oxygen, which are completely safe for both human beings and the environment.
- Low‑Cost Sterilizer: In the long run, compared with other sterilizer technology (such as steam, EO, formaldehyde, etc.) GS ENTERPRISES Plasma Sterilizer has lower cost cycle than sterilizing precision instruments in a very gentle fashion, prolonging their lifespan while saving hospital purchasing costs. In the meantime, the cost of the sterilizer and consumables are much lower than similar products, which saves a lot of daily expenses.
- Powerful Sterilization: Sterilization Assurance Level means the probability of a single being sterile after it has been subjected to the sterilization process. GS ENTERPRISES Plasma Sterilizer can achieve 10⁻⁶ SAL.
- Simple Operation and Control: An intelligent sterilization control system allows one‑key sterilization and displays cycle progress % countdown, which is convenient for relative work arrangements in hospitals.
- Easy Installation and Service: Installation doesn't need room analysis, drainage system, ventilation system, detoxification devices, safety management, regulation measures, personal protective device, and training. Our experienced engineers will provide professional services for installation.
Consumables & Accessories
Best material & competitive price consumables such as Biological Indicator (BI), Chemical Indicator (CI), Hydrogen Peroxide Cassette, Non‑woven Fabric, Instrument Tray, Package, etc.
Cassette
Fixed volume and connection of hydrogen peroxide is sealed in every capsule. A short consumes a capsule. The injection system and transformations procedure ensure the concentration and volume of hydrogen peroxide injected in the sterilization chamber, which is exactly the same for every cycle. In this way the sterilization cycle is repeatable and guaranteed. Moreover, a cassette is easy for storage and operation and for staff when replacing a cassette.
Biological Indicator
- Simple Incubation and doesn't need a sterile environment.
- Special chemical ink for easy observation of colour changes.
- Chemical Indicator is easy to be torn off for long term storage.
- In accordance with related pharmacopoeial, laws, and regulations.
Chemical Indication Tape
- Used to fix non‑woven fabrics when packing.
- Chemical Indicator on tape to indicate whether the package is sterilized.
Chemical Indication Sticker
- Two‑layer sticker can be separated and written with packing information.
- Used to fix non‑woven fabrics (SMS) when packing.
- Chemical Indicator on tape to indicate whether the package is sterilized.
- Stickers are separate and don't need cutting.
- Sticker can be removed and stored after sterilization.
Non‑woven Fabric
- Used to pack Instrument Tray during packing, air permeable, waterproof, flexible, non‑toxic.
Chemical Indicator
- Made with special ink to indicate sterilization status.
- Can write information on it.
- Convenient for sterilization record.
- Shows the sterilizer's working status directly.
Packages
- Used to pack Instruments for sterilization.
- With chemical indicator.
- Disposable medical item.
Size & Capacity
| Inner Chamber (MM) | Capacity |
|---|---|
| 300 × 300 × 300 | 50 Liters |
| 300 × 300 × 1200 | 100 Liters |
| 320 × 320 × 1200 | 125 Liters |
| 350 × 350 × 1200 | 150 Liters |
| 410 × 410 × 1200 | 200 Liters |
